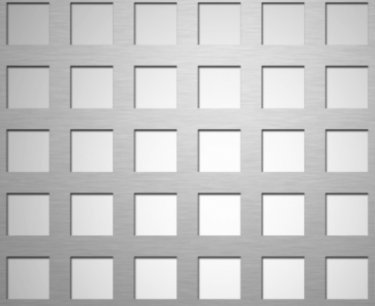

Qg – square holes in straight configuration

Produkto aprašymas

PRODUCT DESCRIPTION

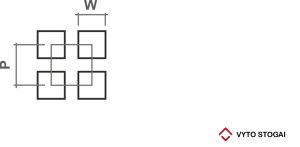

Marking:

Qg – square holes in straight pattern
W – hole size
P – distance between holes

Relative ground clearance

P=(W²/P²)*100%

PRODUCTION PROFILE

Qg W-P (mm)	Clearance
Qg 5-8	39,10%
Qg 5-16	9,80%
Qg 8-10	44,40%
Qg 8-20	16,00%
Qg 8-12	44,40%
Qg 8-24	11,10%
Qg1 0-12	69,40%
Qg 10-15	44,40%
Qg 10-20	25,00%
Qg 10-24	17,40%
Qg 10-30	11,10%

+
